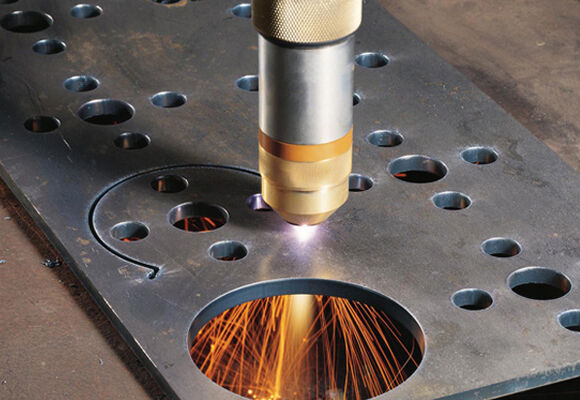

Plasma Cutting
Our computer controlled plasma cutting equipment provides one of the most efficient and least costly cutting methods available.
Although it doesn’t provide the same concentricity, tolerance or smooth square edge as Machine cut, our plasma cutters minimize the heat affected zone that is usually associated with a plasma cut edge, allowing for better tool life and higher speeds and feeds when you are doing additional machining in-house.

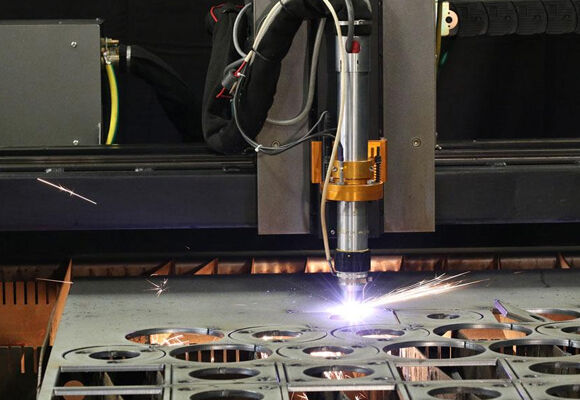

High Definition Plasma Cutting System
High-Definition Plasma Cutting System with Plasma Beveling Precision High-Definition Cutting Combined With State-of-the-Art Plasma Edge Beveling Unsurpassed Flexibility in Processed Stainless and Nickel Alloy Plate Parts
We’ve added a state-of-the-art High-Definition Plasma Cutter capable of cutting high definition up to 2.0″ (50.8mm). The machine is also equipped with a Plasma Edge Beveler that can bevel parts through 3.0″ (76.mm). Our high-definition cutting system combines Y-axis linear ways with pitch line rack and pinion drives to provide the industry’s smoothest cut edge and precise holes. Wider end trucks with a maximum guide roller spread further stabilize the X-axis motion for the ultimate cut edge performance.

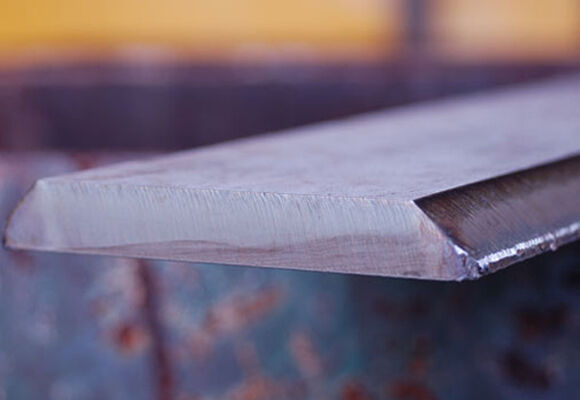

Plasma Beveling
Plasma beveling enables us to cut your parts to size and bevel the edges in one step. This cuts your manufacturing costs by eliminating or reducing downstream processing.
Most shapes can be beveled, including rectangles, circles, and parts created in a CAD program. Beveling can be performed on plate up to 3.0″ (76.2mm) thick, plus or minus 52 degrees, knife edge or with a land.

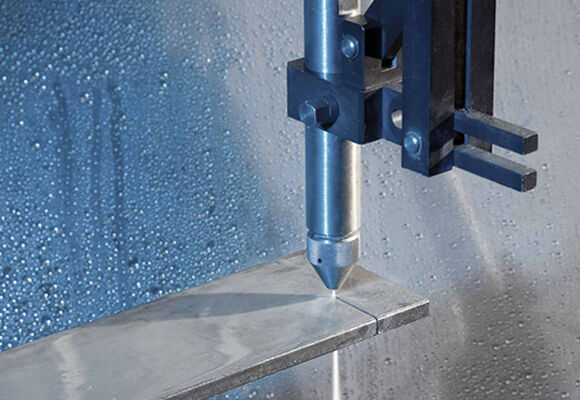

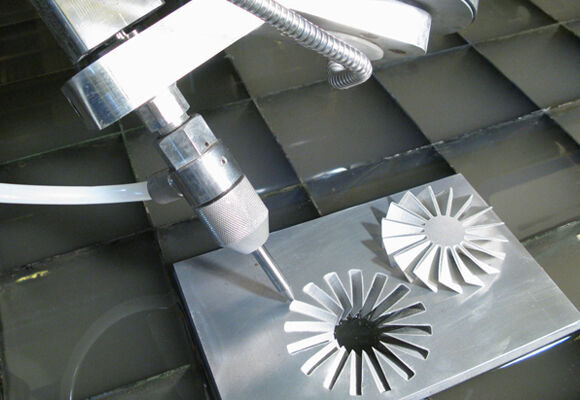

Abrasive Waterjet Cutting
We are committed to providing our customers with the most efficient and cost-effective methods of cutting Stainless Steel and Nickel Alloy Plate and plate products. In addition to our already diverse capabilities of plate processing, we are now offering multiple abrasive waterjets cutting systems to address your cutting needs. Our two WMC Series machines feature four cutting heads, integrated abrasive removal and recycling systems, WindowsT-based PC machine control and programming, and 60,000 psi pumps.

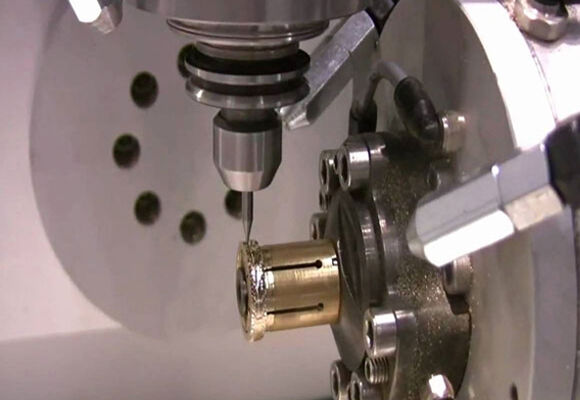

Axis Abrasive Waterjet Cutting
It is capable of processing your most challenging three-dimensional cutting requirements. This machine enables us to offer you cost-effective contour bevel parts, chamfer holes, and weld bevels including K-Bevels.
Machine cut Rings & Discs
Our “specialty of the house.” Machined finishes are available at virtually the same cost as plasma cutting. Our rings and discs are machined to a tolerance of +1/16″ – .000″ on the O.D. and +.000″ – 1/16″ on the I.D. to give you a smoother edge with better concentricity than a plasma cut edge. In addition, you have no heat affected zone, which increases your tool life. We can turn up to 124″ (3150mm) OD, and face the surface of one or both sides to any special thickness or RMS finish. All of this means a lower ultimate “cost in use” to you.
